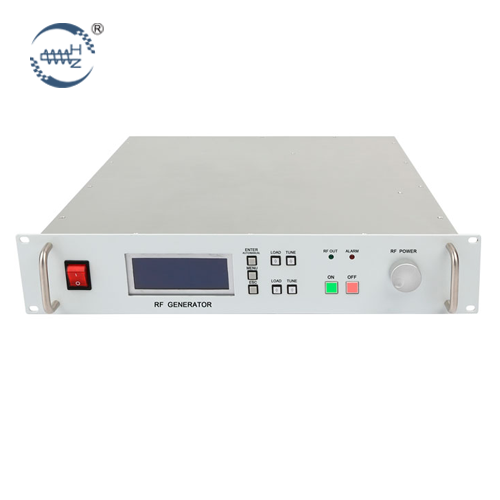

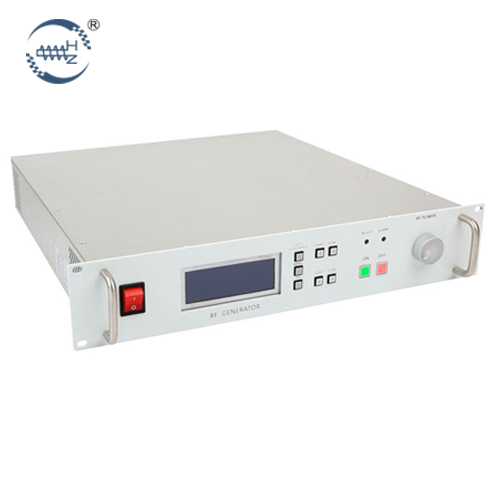

600W RF Power Generator

Product parameters:

Frequency: 2MHz 4MHz 13.56MHz 27.12MHz 40.68MHz +0.005%

Rated power: 600W

RF power output range: 1-600W

Power stability: +0.1%

Reflection power limit: 200W

Load impedance: 50 Ohm

Radio Frequency Output Connector: 50 Ohm, N-type nuts

Harmonic component: <50dBc

Distortion: <60dBc

Overall efficiency: > 70%

Power supply voltage: single-phase AC 220VAC, frequency 50/60Hz

Cooling mode: forced air cooling

External Communication Interface: DB25 Analog Interface, RS485, RS232, Synchronization Function

Screen display: forward power, reverse power, matcher capacitor position, protection status, preset point, bias voltage, alarm content

Whole machine weight: 14KG

Installation: 19 inch standard chassis, 2U height

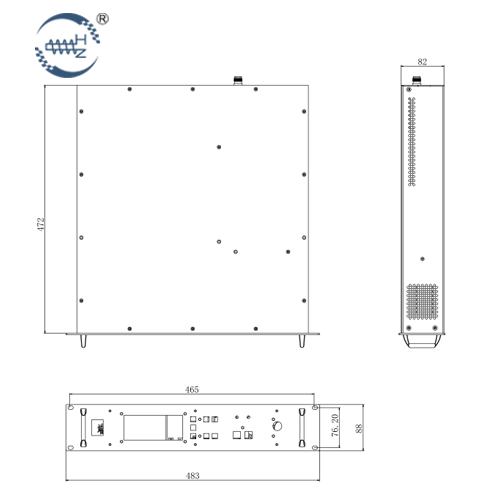

Size of the whole machine: 483(W)*82(H)*472(D)

Other Requirements: Customized to Customer Requirements
