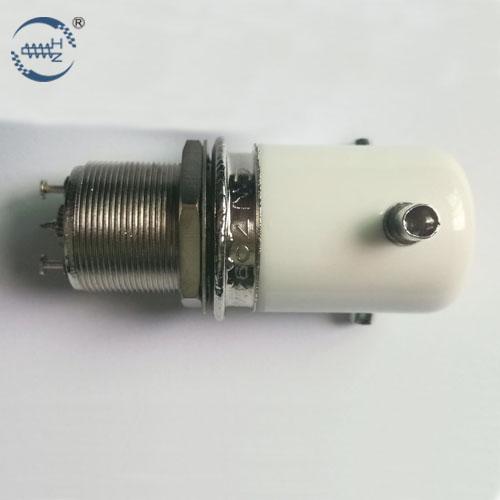

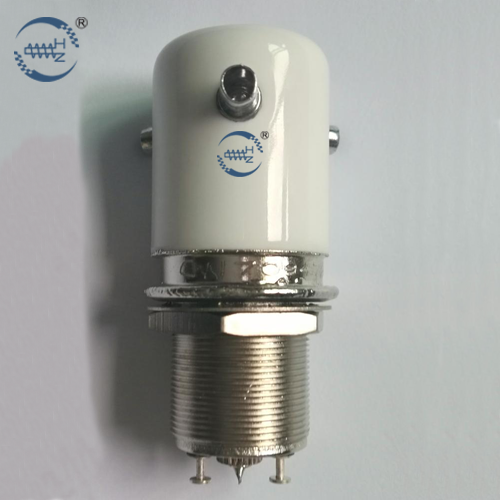

Ceramic SPDT Vacuum & Gas Filled Relay High Voltage Small Volume Long Life
Vacuum relay is a relay that places the contacts in a ceramic shell that is pumped into a high vacuum, using vacuum as an arc extinguishing and insulating medium.
high electric strength, rated carrying current and conversion current, small contact resistance, stable operation, low noise, small distributed capacitance and inductance between poles, small contact opening distance, low excitation power and fast breaking speed. The contact seal is not affected by the pressure, moisture, dust or explosive gas in the surrounding environment, and is suitable for working in harsh environments.
| Test Voltage | 40kV(in oil) |
| Peak Voltage | 35kV(in oil) |
| Current Carry Amps (RMS) | 12amps |
| Contact Operate Speed | 15MS (Milliseconds) |
| Contact Release Speed | 15MS (Milliseconds) |
| Rated Life Operations | 1000,000 |
| Coil Resistance | 125 Ohms |
| Coil Voltage | 24 VDC |
| Important Dimensions | |
| Max Length | 56.9mm |
| Max Diameter | 26mm |
| Mounting Flange | 21mm |
| Weight | 84 g |
| Mounting | With small diameter flange for mounting through hole, an appropriate sized rubber grommet could be utilized. |
| Condition | New, unused. |
Typical application for Relays:
vacuum relays play a vital role when high power and low RF losses are required.
• Vapor Deposition For Semiconductor Wafer Processing
• Radio Antenna Tuning Matching Circuits
• T/R Switches
• Pulse Forming Networks
• Ion Implant
• TWT Power Supplies
• MRI Power Supplies
• Radar Systems
• Security Screening Systems
DC and AC Power Switching Applications
• Intrinsically Safe, Explosion Proof Applications
• Cell Site Power Systems
• Power and Battery Back-Up Systems
• Solar and Other Alternative Power Systems
• Industrial DC Power Switching
• Trucks, Boats, Mining Equipment, Light Rail, Heavy Equipment, Recreation and Emergency Vehicles
Test Equipment & Instrumentation
Vaccum relays are great for high in-rush and stable leakage current applications, and are the perfect solution for low
leakage and high carry current applications.
• ESD Pulse Forming Equipment
• Hi-pot Testing
• Cable Testing
• Motor Winding Testing
• Megohm Testing
• High Power Lasers
• Power Supply Testing
• Mass Spectrometry
• High Voltage Power Supplies
• Transformer Test Equipment
• Ballast Test Equipment
