RF Power Ceramic Capacitor

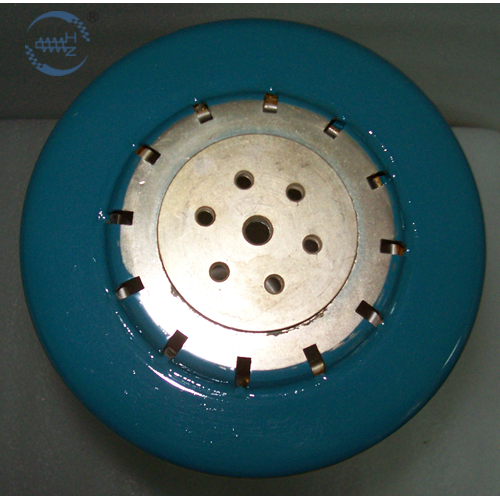

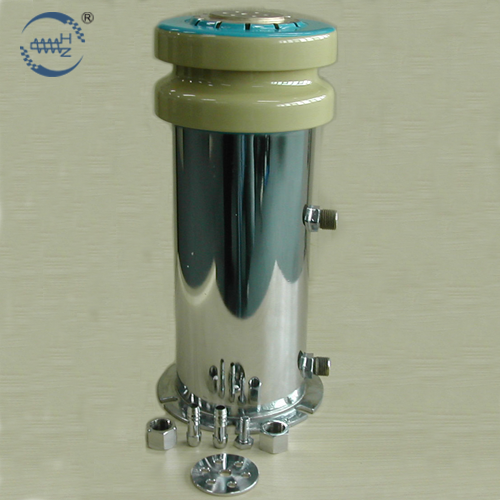

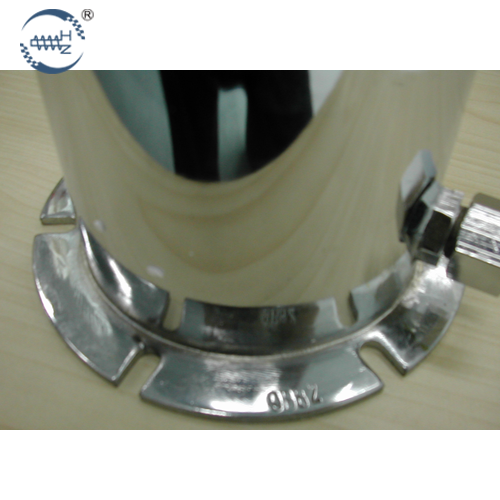

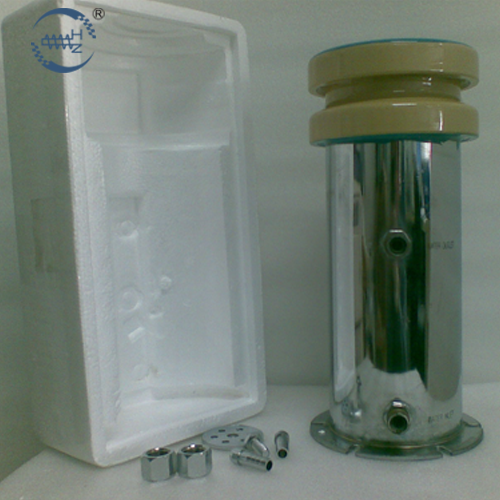

TWX141310-Water-Cooled High Power Ceramic Capacitor

TWX141310-Water-Cooled High Power Ceramic Capacitor

Description: TWX141310-Water-Cooled High Power Ceramic Capacitor
INQUIRY EMAIL

1. Product Name: High power ceramic watercooled RF-Capacitor

2. Model: CCGS-1

The capacitor is used for high power wireless sending set,tank circuit,coupling,filter and feed circuit of middle and high frequency electronic equipment.

We manufacture and export the following all models. High power ceramic watercooled RF-Capacitor CCGS-1(1000PF,20KV,2000KVA)

High power ceramic capacitor technical parameters:
1.Typical dissipation factor: ≤0.0008;
2.Volume resistivity: ≥10000MΩ;
3. Permissible variation of rated capacitance: K(+/-10%);
4.Temperature range: -40/+85;
5. Rated temperature: +85ºC;
6.Maximum relative humidity: 75%;
7. Test voltage: 2 times of rated voltage if the rated voltage≤15KV or 1.5 times of rated voltage if the rated voltage>15KV.
