RF-Generator

2000W PF Power Generator(Mini)

Description: ICP RF power supply, non-standard volume, small size, light weight, efficiency of more than 75%, using industry-wide external communication interface, can be exchanged with imported power sources such
INQUIRY EMAIL

Product parameters:

Rrequency: 2MHz 4MHz 13.56MHz 27.12MHz 40.68MHz +0.005%

Rated power: 2000W

Radio Frequency Power Output Range: 20-2000W

Power stability: +0.1%

Reflection power limit: 400W

Load impedance: 50 Ohm

Radio Frequency Output Connectors: 50 Ohm, 7/16 Nuts

Harmonic component: <50dBc

Distortion: <60dBc

Overall efficiency: > 70%

Power supply voltage: single-phase AC 220VAC, frequency 50/60Hz

Cooling mode: water cooling + forced air cooling

External Communication Interface: DB25 Analog Interface, RS485, RS232, Synchronization Function

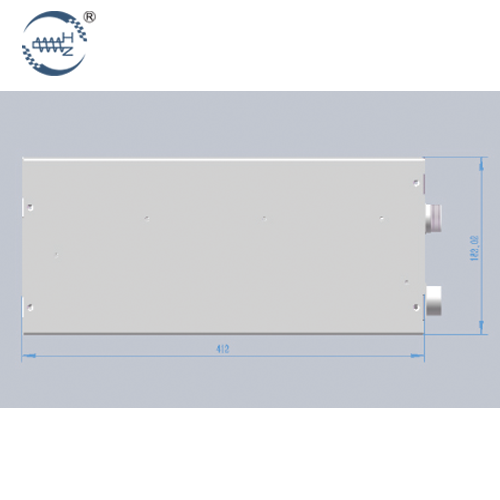

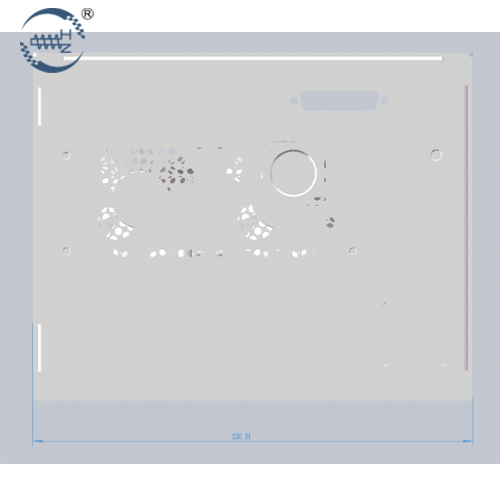

Size: 230(W)*182(H)*412(D)

Other Requirements: Customized to Customer Requirements
