RF-Generator

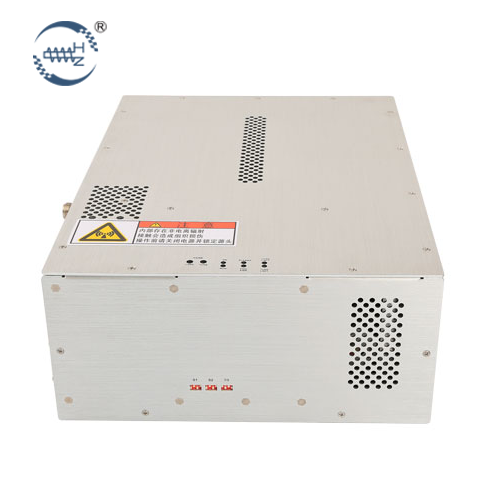

1000W Automatic Match for RF Power Generator

Description: The matcher is completely independent of the power supply and can be matched with many brands of RF power supply such as AE, COMDEL, MKS on the market. The detection module of the RF system can detect
INQUIRY EMAIL

Product parameters:

Frequency: 13.56 MHz 27.12 MHz 40.68 MHz (+0.005%)

Transmission power: 1000W

Normal Operating Reflection Power: <3W

Transmission power: > 90%

Load impedance: 50 Ohm

Control mode: automatic matching control, switching manual control (power communication)

Matching time: 3-5S

Matched Real Part Range: 0-80 Ohm

Matching imaginary part range: - j200 - +j100

Input RF interface: 50 Ohm, N-type head (customizable according to customer requirements)

Output RF interface: 50 Ohm, UHF head (customizable according to customer requirements), 50, 7/16 RF connectors

Cooling mode: forced air cooling

Weight: 5.5KG

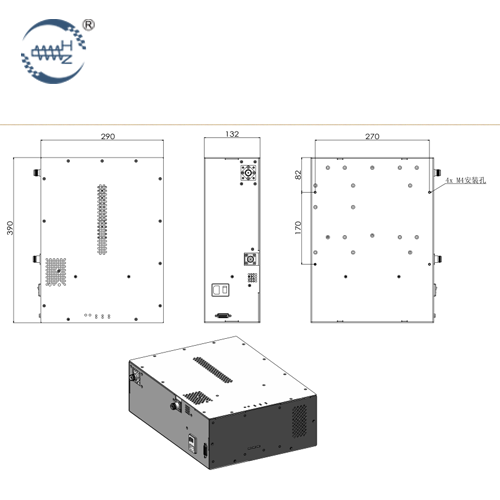

Dimensions (mm): 290 (W)*390 (D)*132 (H)
