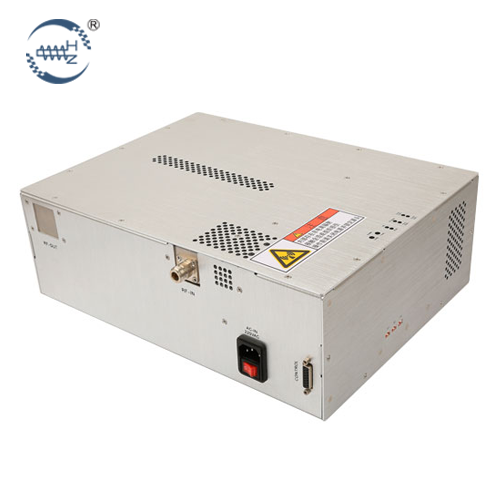

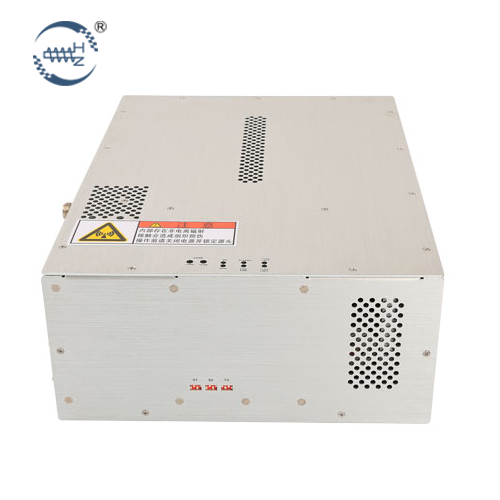

2000W Automatic Match for RF Power Generator

Description: COMDEL, MKS and other brands of radio frequency power supply matching use, the radio frequency system detection module can real-time detect the system's positive and negative power, standing wave rati
INQUIRY EMAIL

Product parameters:

Frequency: 13.56 MHz 27.12 MHz 40.68 MHz (+0.005%)

Transmission power: 2000W

Normal Operating Reflection Power: <3W

Transmission power: > 90%

Load impedance: 50 Ohm

Control mode: automatic matching control, switching manual control (power communication)

Matching time: 3-5S

Matched Real Part Range: 0-80 Ohm

Matching imaginary part range: - j200 - +j100

Input RF interface: 50 Ohm, N-type head (customizable according to customer requirements)

Output RF interface: 50 Ohm, UHF head (customizable according to customer requirements), 50, 7/16 RF connectors

Cooling mode: forced air cooling

Weight: 9.5KG

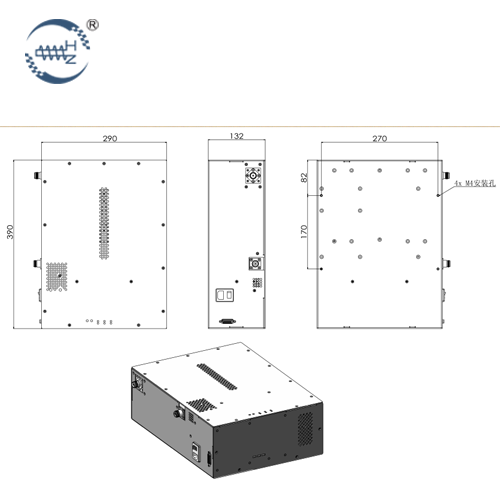

Dimensions (mm): 290 (W)*390 (D)*132 (H)
