RF-Generator

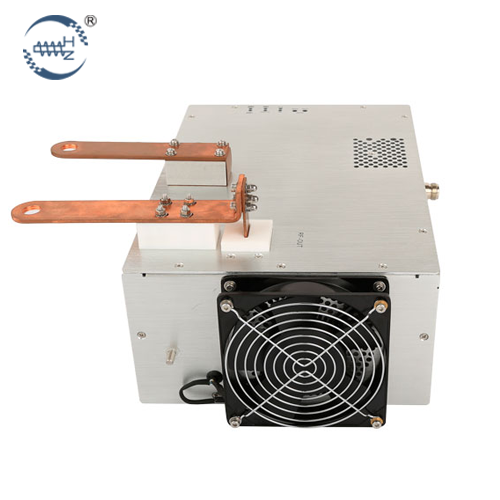

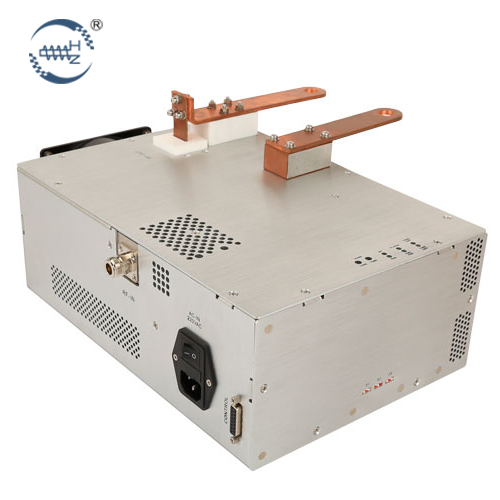

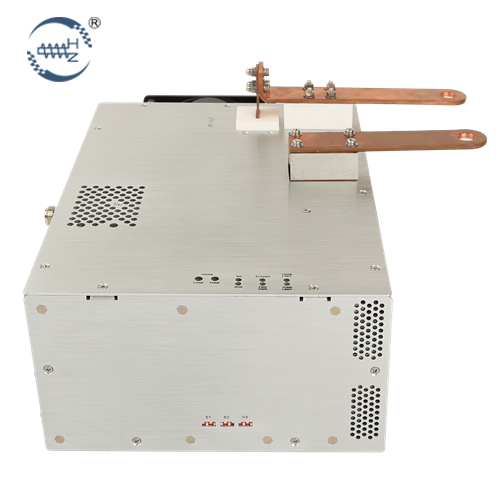

2000W Automatic Match for RF Power Generator(Mini)

Description: Our company customized 2000 W small size matcher for customers, small size, light weight, compact structure, easy to install, the matcher is completely independent of the power supply, can be used wit
INQUIRY EMAIL

Product parameters:

Frequency: 13.56 MHz 27.12 MHz 40.68 MHz (+0.005%)

Transmission power: 2000W

Normal Operating Reflection Power: <3W

Transmission power: > 90%

Load impedance: 50 Ohm

Control mode: automatic matching control, switching manual control (power communication)

Matching time: 3-5S

Matched Real Part Range: 0-80 Ohm

Matching imaginary part range: - j200 - +j100

Input RF interface: 50 Ohm, N-type head (customizable according to customer requirements)

Output RF interface: 50 Ohm, UHF head (customizable according to customer requirements), 50, 7/16 RF connectors

Cooling mode: forced air cooling

Weight: 6KG

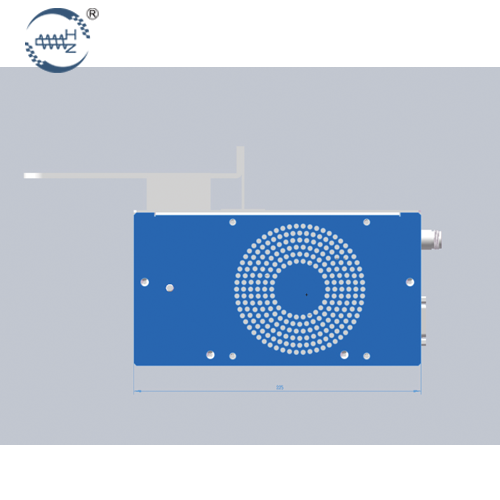

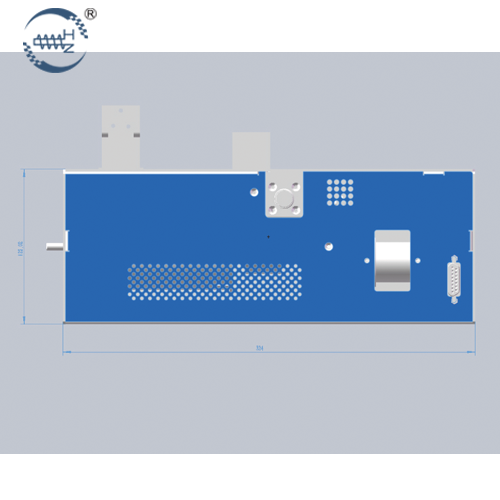

Dimensions (mm): 225 (W)*324 (D)*122 (H)
